Under the Setup menu
SETUPメニューには、
there are several items that you will find that will help you
いくつかの便利な項目があり、
when configuring your system during an installation, or before your project or show.
設置時や本番の前にシステムセットアップする場合に使用します。
These include Output Port Setup, Cascade Setup, and Wordclock Setup.
具体的には、アウトプットポート、カスケード、 ワードクロックのセットアップなどです。
Let's take a look at those now.
それでは見ていきましょう。
Let's start by touching on the "Setup" icon.
まず「SETUP」アイコンをタッチします。
Here, on the Setup window, in the "System Setup" section,
このSETUP画面のSYSTEM SETUPセクションに、
we will find our "Output Port Setup", "Wordclock Setup", and "Cascade Setup".
OUTPUT PORT SETUP、WORD CLOCK SETUP、 CASCADEがあります。

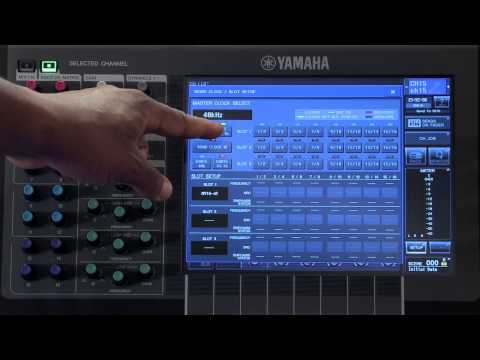

Touch on the icon that says "Output Port Setup".
「OUTPUT PORT SETUP」アイコンをタッチします。
On this window, we can make adjustments to the output ports which are connected to our CL console.
このポップアップでは、 CLコンソールに接続されている出力ポートを調整できます。
You can choose any of the 64 Dante outputs,
選択できる出力ポートは、64 Dante出力、
any of your 3 card slot outputs, your Omni outputs, or your 2-track digital output.
3カードスロット出力、OMNI OUT、2トラックDIGITAL OUTです。
When one of those output ports is selected,
いずれかの出力ポートを選択して、
you can delay that output port, change the polarity, and adjust the gain.
ディレイをかけたり、極性を変えたり、ゲインを調整したりできます。
When changing the delay,
ディレイ値を設定するときは、
your delay scale can be configured by touching on "Delay Scale" on the upper right-hand corner.
画面右上の「DELAY SCALE」をタッチして単位を変更することもできます。
Let's close this window and move to the "Wordclock Setup" page.
このポップアップは閉じて、 「WORD CLOCK SETUP」ポップアップに行きましょう。
On your "Wordclock Setup" page,
「WORD CLOCK SETUP」ポップアップでは、
you can choose what the source of the wordclock for your console will be.
コンソールが動作するワードクロックソースを選択できます。
You can choose internal 48k, internal 44.1, Wordclock input,
選択対象は、内蔵クロック48kHz、44.1kHz、外部クロック入力、
the Dante network (both at 44.1k or 48 k), or one of the card slots.
Dante入力(44.1kHzまたは48kHz)、またはいずれかのカードスロットです。
The icons in the upper-right are your indication of the quality of that clock that's coming into the console.
右上のアイコンは、コンソールに入力されているクロック信号の状態を表示しています。
If the signal is locked you will see a blue icon.
そのクロック信号がロックしていれば青色のアイコン、
If the signal is locked but not in sync, you will see a yellow icon.
ロックしていても同期していなければ黄色のアイコン、
Red means that that wordclock signal is unlocked.
ロックしていなければ赤色のアイコンで表示されます。
If you have an MY16 card placed in one of your card slots and sample rate conversion is available,
スロットにサンプリングレートコンバーター対応のカードを装着している場合は、
you can activate it in this portion here.
ここでそれを有効にできます。
Let's close this popup and move on to the Cascade setup.
このポップアップは閉じて、次にカスケード設定に行きましょう。
On the Cascade patch window,
CASCADEポップアップでは、
we can choose how signals will come into or leave our console via the "Cascade" bus.
このコンソールのCASCADEバスを通じて、 外部とどの信号を送受信するかを選択します。
This is perfect for those situations where you want to have 2 consoles act as one.
2台のコンソールをカスケード接続して、 1台のシステムとして動作させたい場合に便利です。
Say, for example, you want the signal from this console,
たとえば、このコンソールのSTEREOバスの信号を
to go to another console through the Stereo bus.
別のコンソールに送りたいとします。
Make sure you're looking at "Cascade Out Patch",
「CASCADE OUT PATCH」タブを開いていることを確認して、
select the Stereo bus, then choose which slot port that signal will be sent from.
STEREOバスを選択して、 その信号を送信するスロットポートを選びます。
Using the Cascade function is perfect for those situations when you have more than one console
このようにカスケード機能は、2台のコンソールがあって、
and you want them to act as one unit.
1台のシステムとして動作させたい場合に便利です。
